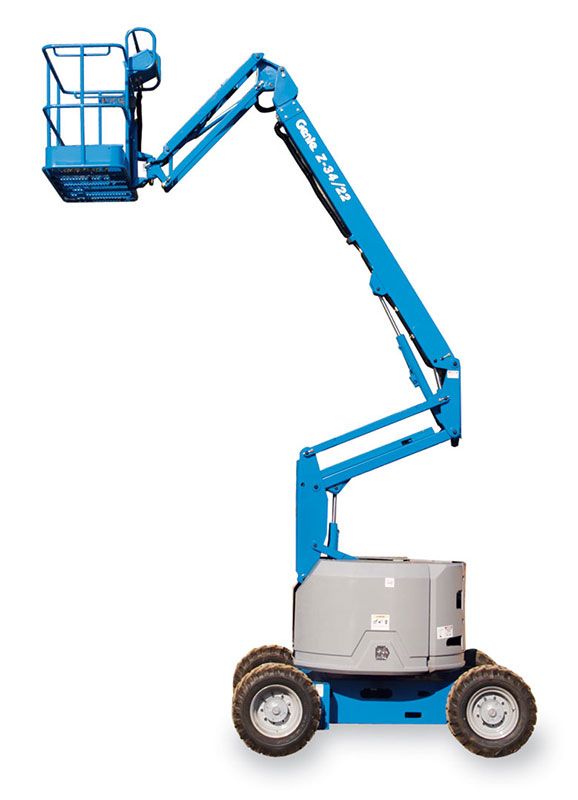

34′ Articulating Boom Lift – Z-34/22
Rental Rates
Select dates for price
Description
- The Z-34/22 IC Series combines the industry leading lift structure with an unbeatable engine package.
- A new drive system, with a high quality axial piston pump and integrated controls, provides the smooth control, durability and efficient power transmission required for rough terrain operation.
- Two-speed hydraulic motors provide optimum speed and torque. The 4×2 model operates at 0-4.5 mph (0-7.2 km/h) with 37% gradeability. The 4×4 model operates at 0-4 mph (0- 6.4 km/h) with 45% gradeability.
- Zero tailswing and nose swing in all positions, with a 68 in (1.73m) wide 4×2 model and 70 in (1.78 m) wide 4×4 model, provide excellent maneuverability in confined areas.
- Dual parallelogram riser allows ascent and descent along a vertical plane without retraction or extension of the boom.
Features
Weight****: 11,000 lbs.
Measurements
Working Height Maximum: 40 ft, 6 in
Platform Height Maximum: 34 ft, 6 in
Horizontal Reach Maximum: 22 ft, 3 in
Up and Over Clearance Maximum: 15 ft
Platform Length: 2 ft, 6 in
Platform Width: 4 ft, 8 in
Height – Stowed: 6 ft, 7 in
Length – Stowed: 18 ft, 6 in
Storage Height: 7 ft, 5 in
Storage Length: 13 ft, 5 in
Width: 5 ft, 8 in
Wheelbase: 6 ft, 2 in
Ground Clearance: 6 in
Productivity
Lift Capacity: 500 lbs.
Platform Rotation: 180°
Vertical Jib Rotation: 139°
Turntable Rotation: 355° non-continuous
Turntable Tailswing: zero
Drive Speed – Stowed: 4.0 mph
Drive Speed – Raised**: 0.68 mph
Gradeability – Stowed***: 30%
Turning Radius – Inside: 5 ft, 9 in
Turning Radius – Outside: 13 ft, 1 in
Controls: 24V DC Proportional
Tires – air filled: 9 x 14.5 in
Power
Power Source: 48V DC (eight 6 V batteries 315 Ah capacity)
Auxiliary Power Unit: 24V DC
Hydraulic Tank Capacity: 4 gal.
