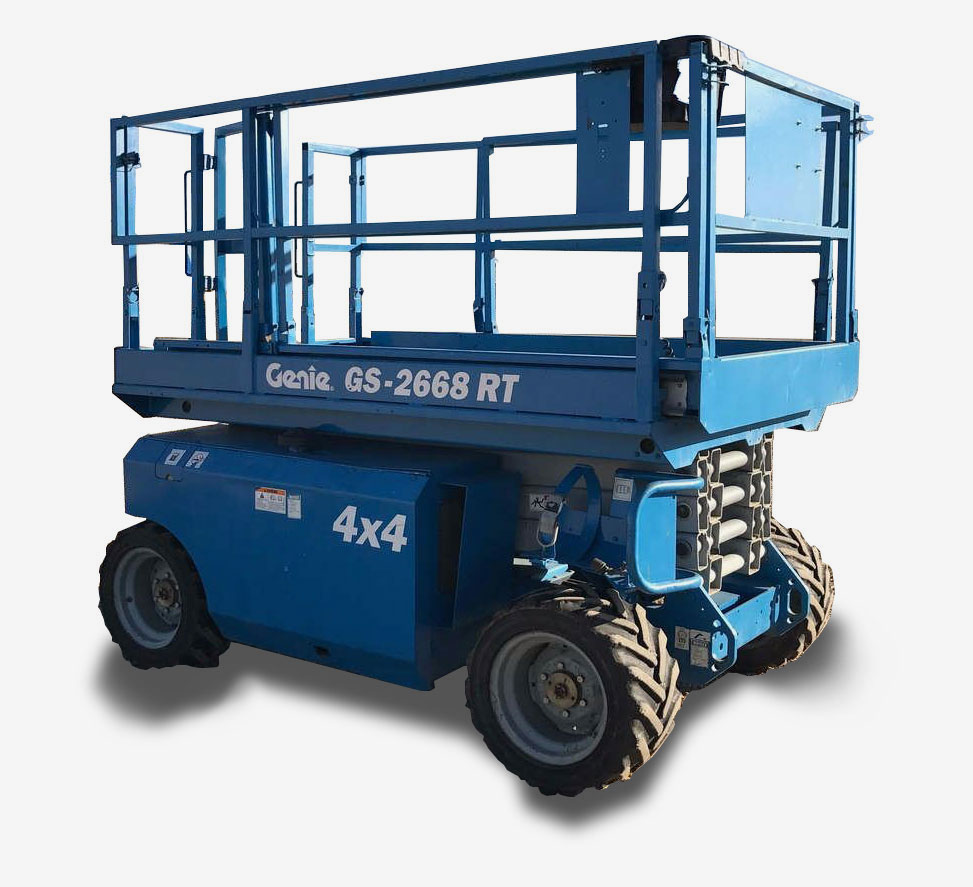

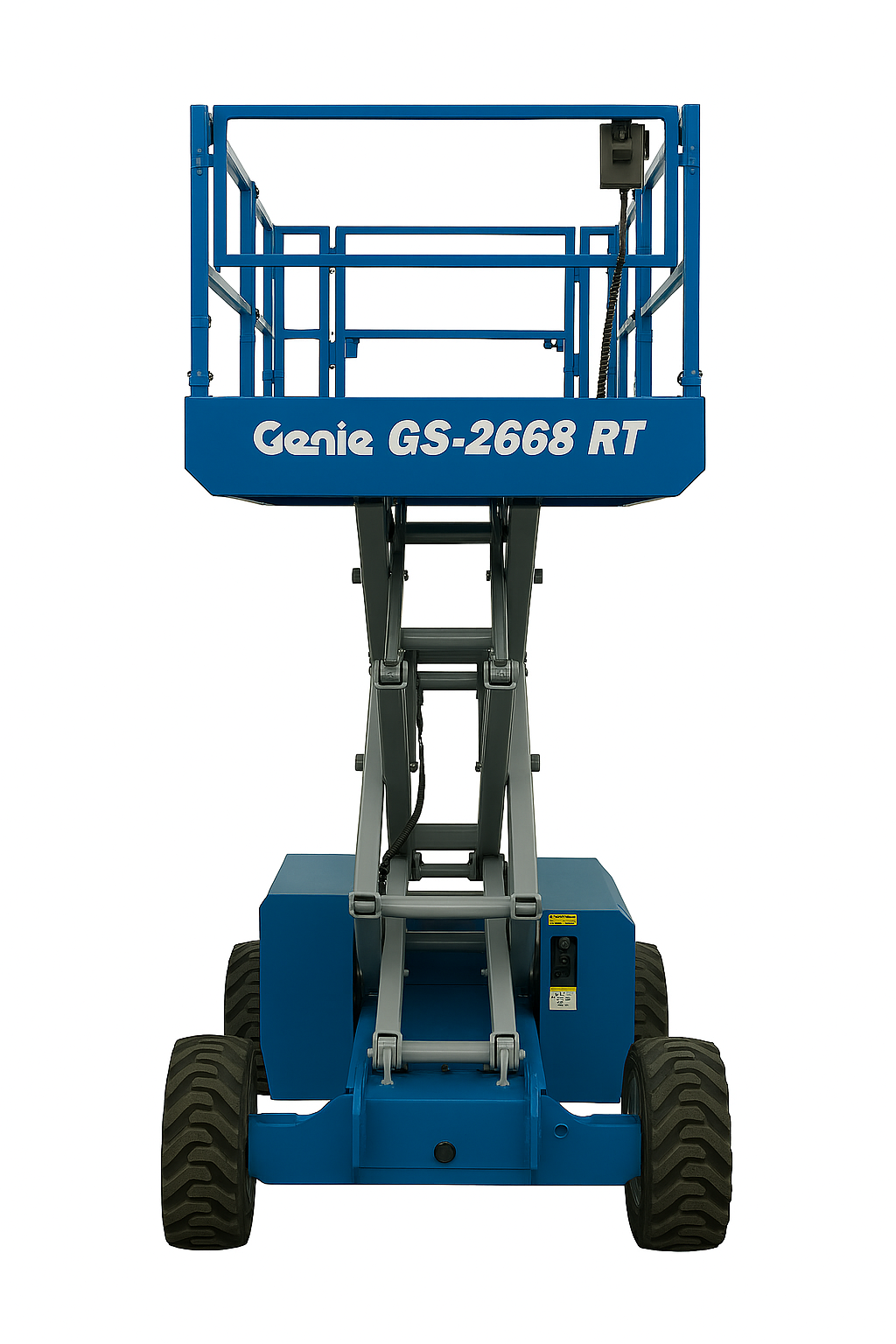

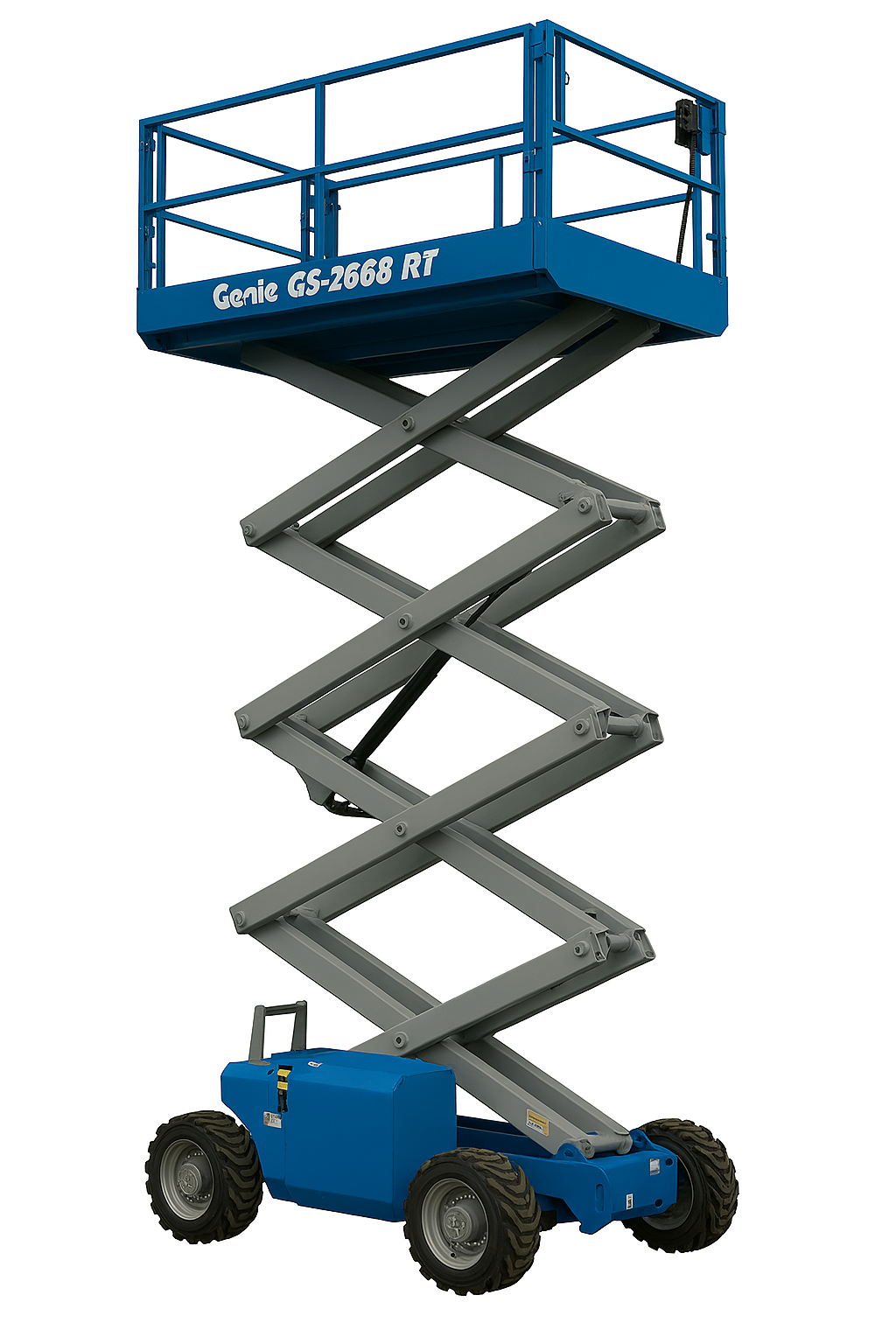

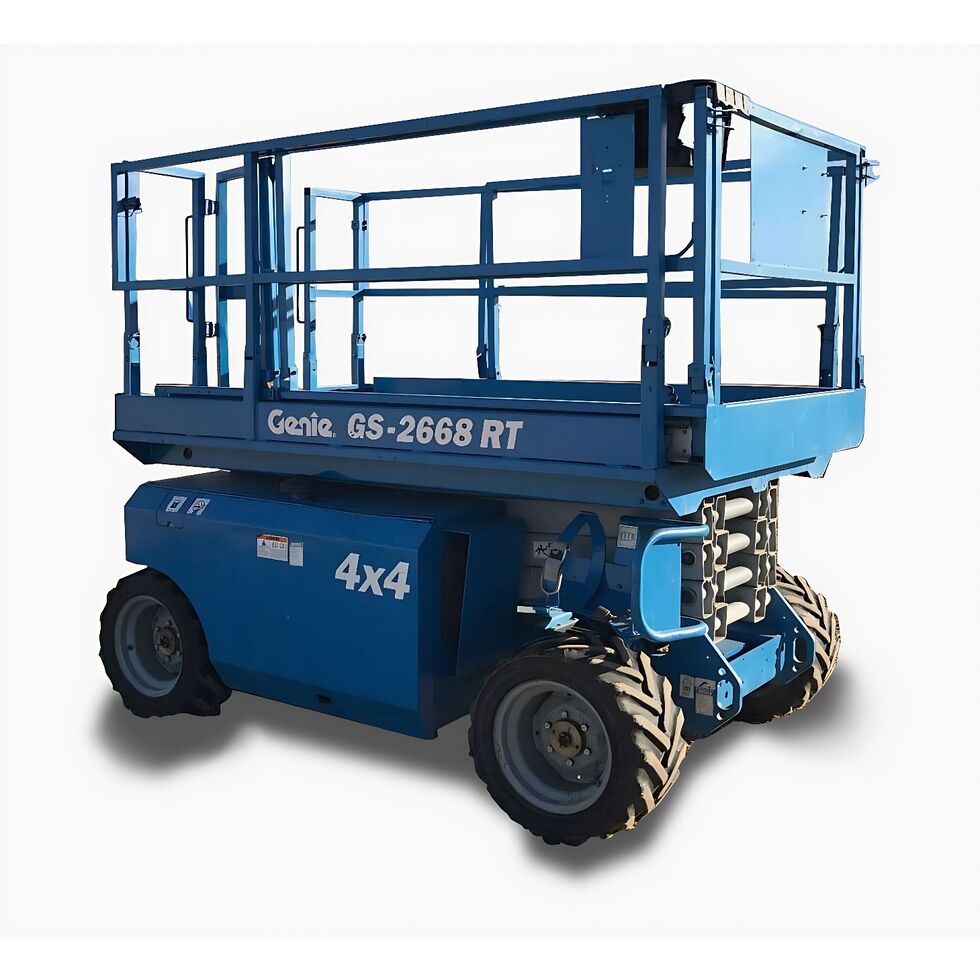

Scissor Lift, Rough Terrain – Genie GS 2668RT
Rental Rates
Maui: Kahului
Day
$305.00
Week
$930.00
4 Week
$2,194.00
Price
Select dates for price
Add these items to your order
-
Certificate of Liability Insurance is Required To Rent This Unit.
Call for Pricing
Description
Reliable rough terrain scissor lifts with superior gradeability and standard four-wheel drive.
Standard Features
- GS- 2668 RT has 32 ft (9.75 m) working height and GS-3268 RT has 38 ft (11.58 m)working height
- 60 in (1.52 m) roll-out platform extension
- 68 in (1.73 m) unit width
- 1,250 lb (567 kg) load capacity on the GS-2668 RT and 1,000 lb (454 kg) load capacity on the GS-3268 RT
- Four-wheel drive
- High-speed/high-torque selector switch
- Proportional drive
- Two-speed lift functions
- Multiple disc brakes
- On-board diagnostic system
- Emergency stop switches at platform and ground controls
- Manual brake release
- Manual platform lowering valve
- Full height platform swing gate
- Swing-out engine tray
- Foam-filled rough terrain tires
- AC wiring to platform
- Tilt sensor with an audible alarm
- Automotive horn
- Hour meter
Standards Compliance
- ANSI/SIA A92.6
- CSA CAN3-B354.2-M82
- CE compliance option
- AS 1418.10
Features
|
Model
|
GS-2668RT
|
GS-3268RT
|
||
|
USA
|
Metric
|
USA
|
Metric
|
|
|
Working height
|
32 ft
|
9.75 cm
|
38 ft
|
11.58 cm
|
|
Platform height
|
26 ft
|
7.9 m
|
32 ft
|
9.75 m
|
|
Height – stowed (guardrails)
|
91 1/2 in
|
2.32 m
|
96 1/2 in
|
2.45 m
|
|
Height – stowed (guardrails lowered)
|
67 in
|
1.7 m
|
72 in
|
1.83 m
|
|
Height – stowed (platform)
|
46 3/4 in
|
1.19 m
|
51 3/4 in
|
1.31 m
|
|
Length – stowed
|
105 in
|
2.67 m
|
105 in
|
2.67 in
|
|
Length -platform extended
|
161 1/2 in
|
4.1 m
|
161 1/2 in
|
4.1 m
|
|
Width
|
68 in
|
1.73 m
|
68 in
|
1.73 m
|
|
Wheelbase
|
73 in
|
1.85 m
|
73 in
|
1.85 m
|
|
Ground clearance
|
7 1/2 in
|
19 cm
|
7 1/2 in
|
19 cm
|
|
Platform width
|
61 in
|
1.55 m
|
61 in
|
1.55 m
|
|
Platform length -stowed
|
99 in
|
2.5 m
|
99 in
|
2.5 m
|
|
Platform width -extended
|
156 in
|
3.96 m
|
156 in
|
3.96 m
|
|
Roll-out platform extension
|
60 in
|
1.52 m
|
60 in
|
1.52 m
|
|
Lift Capacity
|
1,250 lbs
|
567 kg
|
1,000 lbs
|
454 kg
|
|
Extension deck capacity
|
300 lbs
|
136 kg
|
300 lbs
|
136 kg
|
|
Turning radius – outside
|
145 in
|
3.68 m
|
145 in
|
3.68 m
|
|
Turning radius – inside
|
60 in
|
1.52 m
|
60 in
|
1.52 m
|
|
Power source
|
Kubota 23 hp (17 kw) Gas/LPGPG, both models
Kubota 20 hp (15 kw) diesel, both models |
|||
|
Drive speed – stowed
|
3.6 mph
|
5.8 km/h
|
3.6 mph
|
5.8 km/h
|
|
Drive speed – raised
|
0.5 mph
|
0.8 km/h
|
0.5 mph
|
0.8 km/h
|
|
Elevate/lower speed
|
30/35 sec
|
40/37 sec
|
||
|
Proportional controls
|
standard
|
standard
|
||
|
Tires
|
12-23 1/2 in
|
30-60 cm
|
12-23 1/2 in
|
30-60 cm
|
|
Gradeability
|
40%
|
35%
|
||
|
Drive
|
four wheel both models
|
|||
|
Multiple disk brakes
|
dual rear wheel, both models
|
|||
|
Hydraulic tank capacity
|
21 1/2 gal
|
81 litre
|
21 1/2 gal
|
81 litre
|
|
Fuel tank capacity
|
15 gal
|
57 litre
|
15 gal
|
57 litre
|
|
Weight
|
6.550 lbs
|
2,971 kg
|
7,520 lb
|
3,411 kg
|
