19′ Electric Scissor Lift
Rental Rates
Select dates for price
Description

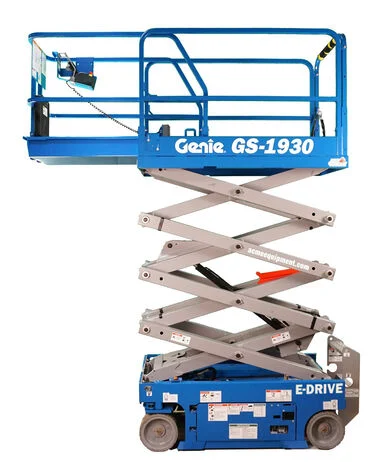

Genie GS-1930 Scissor Lift
Standard Features
- Compact 30-in. width
- Working height of 25 ft.
- 500-lb. lift capacity
- 39-in. rollout platform extension
- Pothole guards
- Tilt level sensor with audible alarm
- Hour meter
Standards Compliance
- ANSI/SIA A92.6
- CSA CAN3-B354.2-M82
- CE compliance option
- AS 1418.10
Features
|
· Model |
GS-1930 |
|
|
USA |
|
Working Height |
25 ft. 1 in. |
|
Platform floor height |
19 ft. 1 in. |
|
Height – stowed (guardrails) (ANSI CSA) |
82 in. |
|
Height – stowed (platform) |
38 in. |
|
Length – Stowed |
72 in |
|
Width |
30 in. |
|
Wheelbase |
52 in. |
|
Ground Clearance |
2 5/8 in |
|
Ground Clearance – pothole guards deployed |
7/8 in |
|
Platform length – outside |
64 3/8 in. |
|
Platform width – outside |
64 3/8 in. |
|
Platform length – extended |
103 3/8 in. |
|
Guardrail height |
39 in. |
|
Toeboard height |
6 in. |
|
Turning radius – outside |
61 |
|
Turning radius – inside |
zero |
|
Drive speed – stowed |
0 – 2.5 mph |
|
Drive speed – raised |
0 – 0.6 mph |
|
Elevate/lower speed |
16 / 23 sec. |
|
Proportional controls |
standard |
|
Gradeability |
30% |
|
Drive |
dual front wheel |
|
Multiple disk brakes |
dual rear wheel |
|
Pothole protection |
standard |
|
Weight |
2,658 lbs. |
