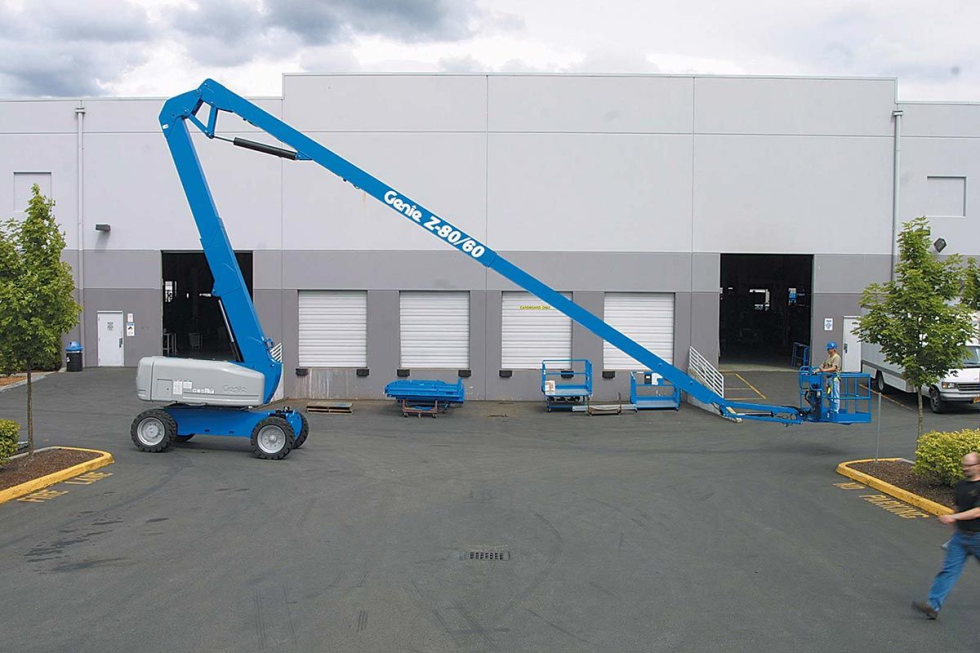

80' Articulating Boom - Z-80/60

80′ Articulating Boom – Z-80/60

Rental Rates

Maui: Kahului
Day $781.00
Week $2,804.00
4 Week $7,840.00
Price

Select dates for price

Total

Select dates for total

Description



Industry leading range of motion, enhanced with Genie’s new innovative lift structure, increases operator productivity.

Standard Features

  • 86 ft (26.4 m) working height
  • 60 ft (18.3 m) outreach
  • 29 ft (8.8 m) up and over clearance
  • 6 ft (1.83 m) jib boom with128 degree range of motion
  • 8 ft (2.44 m) steel platform
  • 500 lb (227 kg) lift capacity
  • Oscillating front axle
  • Dual fuel (Gas/LPG) or diesel engine options
  • Fully proportional platform controls with ramp up/down feature
  • Hydraulic platform rotation
  • 360 degrees continuous turntable rotation
  • 12V DC auxiliary power unit
  • Full time positive traction drive
  • Full time 4WD (on 4WD models)
  • Closed-loop hydrostatic drive
  • Hydraulic Oil Cooler
  • Drive enable system
  • Self-leveling platform
  • Onboard full diagnostics
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • Engine monitoring display
  • AC wiring to platform
  • High-angle steer
  • Extra Wide RT foam-filled tires
  • Wire braided hydraulic hoses
  • Tilt alarm
  • Hour meter





Features

Measurements:

Working Height Maximum*: 84 ft.

Platform Height Maximum: 78 ft.

Horizontal Reach Maximum: 60 ft.

Up and Over Clearance Maximum: 29 ft.

Below Ground Reach: 15 ft, 10 in.

Platform Length: 3 ft. / 2 ft, 6 in.

Platform Width: 8 ft. / 6 in.

Height: 9 ft, 10 in.

Length: 37 ft.

Length (transport): 37 ft.

Width: 8 ft, 2 in.

Wheelbase: 9 ft, 4 in.

Ground Clearance (center): 12 in.

Productivity:

Lift Capacity: 500 lbs.

Platform Rotation: 160°

Vertical Jib Rotation: 135°

Turntable Rotation: 360° continuous

Turntable Tailswing (riser up): 3 ft, 10 in.

Turntable Tailswing (riser down): 7 ft, 4 in.

Drive Speed (stowed): 3.0 mph

Drive Speed (raised): 0.68 mph

Lift Speed to Full Height: 76 sec.

Gradeability (2WD): 30%

Gradeability (4WD): 45%

Tilt Sensor Activation: Front to Back: 4.5° and side to side 4.5°

Turning Radius (2WS inside): 14 ft, 6 in.

Turning Radius (2WS outside): 24 ft, 6 in.

Turning Radius (4WS inside): 7 ft.

Turning Radius (4WS outside): 15 ft.

Controls: 12 V DC Proportional

Tires: 18-625 NHS

Fuel Tank:

Fuel Tank Capacity: 35 Gal. (Diesel)

Weight:

2WS: 35,925 lbs.

4WS: 37,525 lbs.

(For complete specifications, see “Download Resources.”)
