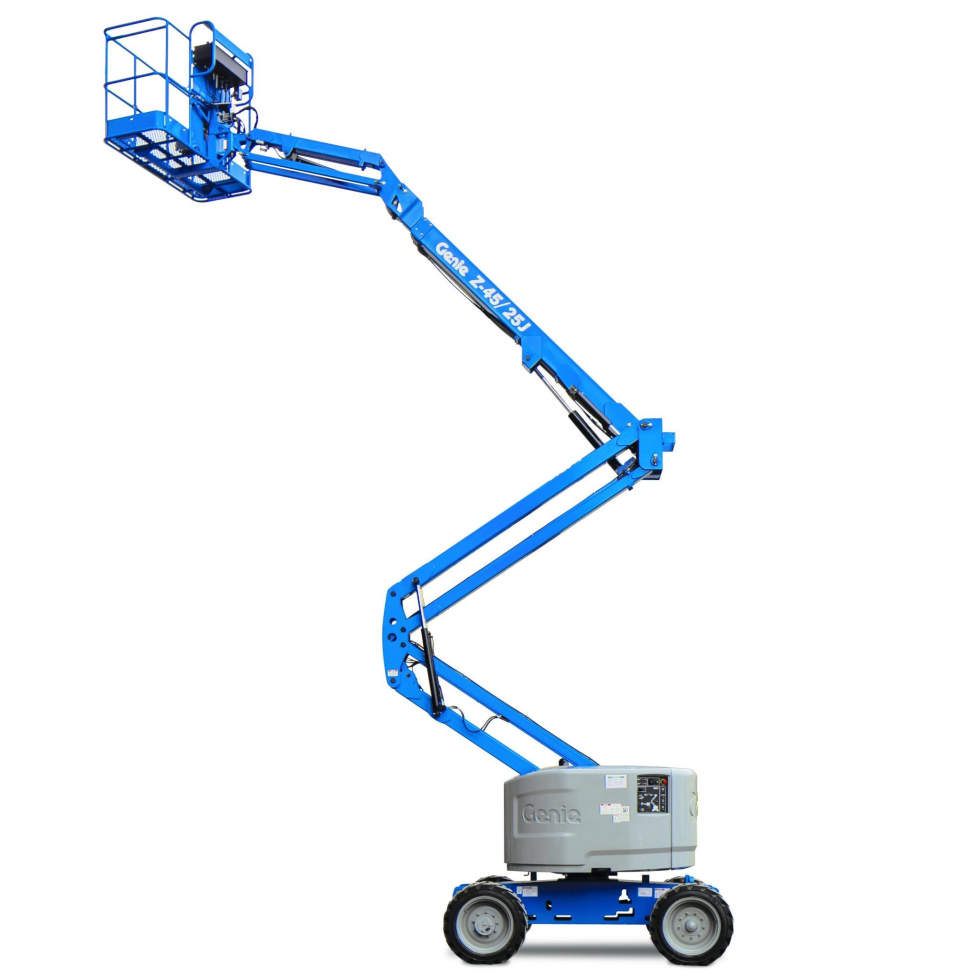

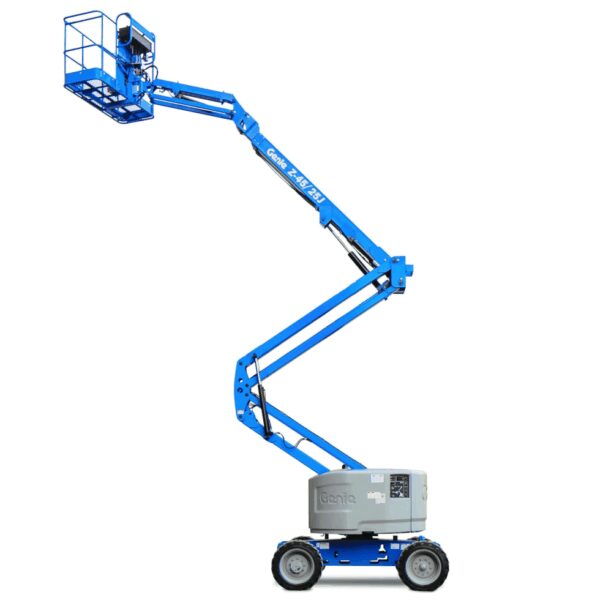

45′ Articulating Boom Lift – Z45/25
Rental Rates
Select dates for price
Description
Make short work of big jobs.
With an extended reach, models with jibs, and a variety of outstanding performance features, the Z-45/25 DC/Bi-Energy handles the most challenging high-reach jobs. The revolutionary Genie Bi-Energy system combines the quiet, emission-free and efficient operation of a 48V DC machine with the versatility of a diesel generator powered machine to provide a boom that is ideal for indoor and outdoor applications.
Features
Z-45/25
Working height: 51 ft 5 in
Platform height: 45 ft 5 in
Height – stowed: 6 ft 7 in
Length – stowed: 18 ft
Width: 5 ft 9 in
Wheelbase: 6 ft 8 in
Ground clearance – center: 8 1/2 in
Ground clearance – min: 7 in
Platform length: 30 in
Platform width: 72 in
Horizontal reach max: 24 ft 6 in
Up and over clearance: 22 ft 6 in
Lift capacity: 500 lb
Turning radius – inside: 5 ft
Turntable rotation: 359 degrees
Tailswing: zero
Platform rotation: 180 degrees
Power source: 48V DC (8 6V or 48V DC with Kubota Diesel 12 hp (9 kw)
Drive speed – stowed: 3 mph
Drive speed – raised: 0.6 mph
Lift speed to full height: 90 sec
Controls: 24V DC proportional
Auxiliary power unit: 24V DC
Tires: 9 – 14.5
Gradeability – stowed: 30%
Hydraulic tank capacity: 8 gal
Fuel tank capacity: 9 gal
Weight – DC: 15,900 lb
Weight – Bi-Energy: 16,100 lb
Z-45/25J
Working height: 51 ft 3 in
Platform height: 45 ft 3 in
Height – stowed: 6 ft 7 in
Length – stowed: 22 ft 3 in
Width: 5 ft 9 in
Wheelbase: 6 ft 8 in
Ground clearance – center: 8 1/2 in
Ground clearance – min: 7 in
Platform length: 30 in
Platform width: 72 in
Horizontal reach max: 25 ft 3 in
Up and over clearance: 22 ft 6 in
Lift capacity: 500 lb
Turning radius – inside: 5 ft
Turntable rotation: 359 degrees
Tailswing: zero
Platform rotation: 160 degrees
Power source: 48V DC (8 6V or 48V DC with Kubota Diesel 12 hp (9 kw)
Drive speed – stowed: 3 mph
Drive speed – raised: 0.6 mph
Lift speed to full height: 90 sec
Controls: 24V DC proportional
Auxiliary power unit: 24V DC
Tires: 9 – 14.5
Gradeability – stowed: 30%
Hydraulic tank capacity: 8 gal
Fuel tank capacity: 9 gal
Weight – DC: 16,100 lb
Weight – Bi-Energy: 16,300 lb
