Aerial Boom 77' Compact Track

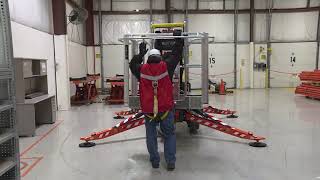

Video thumbnail

Aerial Boom 77′ Compact Track

Rental Rates

Maui: Kahului
Day $781.00
Week $2,804.00
4 Week $7,840.00
Price

Select dates for price

Total

Select dates for total

Add these items to your order

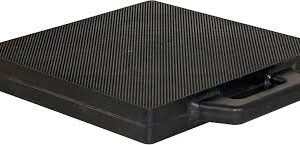

  • Pad For Outriggers

    Pad For Outriggers

    $28.00 / Day

Description

Now you can go more places around the job site thanks to the low weight and non-marking tracks on the Compact Crawler boom. Available in four models with working heights ranging from 50 ft to 106 ft, JLG® Compact Crawler boom lifts feature a tracked wheel carriage that climbs steps and a narrow chassis for access through doorways, gates and yards

Features

Platform Height 77-ft 5-in / 23.60-m

Horizontal Outreach 43-ft / 13.1-m
Platform Capacity 500-lb / 227-kg
Swing 360 Degrees Non-continuous Platform Rotation 124 Degrees (+62, -62 Degrees)
jib (Range of Articulation) 89 Degrees (+0, -89 Degrees)
Ground Bearing Pressure (Tracks) 7.7 psi / .54 kg/cm2
Ground Bearing Pressure (Outriggers) 64.1 psi / 4.50 kg/cm²
Drive Speed Diesel 0.7 mph / 1.2 km/h
Optional Lithium-Ion 0.75 mph / 1.2 km/h Max Approach /
Depart Angles Diesel and Lithium-Ion 20° / 22°
Bi-Energy 17° / 22°
Gradeability 28% Weight* (Diesel) 9,665-lb / 4,385-kg
*Certain options or country standards increase weight
Power Diesel Engine: Kubota D902 21.6 hp / 16.1 kW
Fuel Tank Capacity 5 gal / 19 L AC Motor 120V AC / 60 HZ Optional: Lithium Ion Battery 76V / 100Ah
Tracks Standard Non-marking Tracks
Hydraulic System Capacity 15.85 gal / 60 L
SKU: 6770 Category:
