Rammer, Jumping Jack, 4 cycle Wacker
Day
$121.00
Week
$464.00
4 Week
$973.00
Price
Select dates for price
Add these items to your order
Description

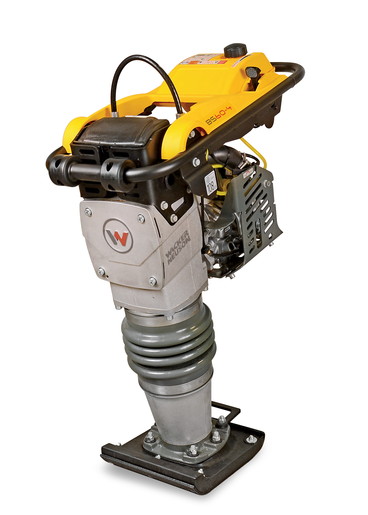

Four-stroke vibratory rammer with 280 mm ramming shoe for soil compaction, Honda GX engine
| Number of blows |
690 1/min |
Features
| ENGINE |
Metric |
| Air cleaner |
dry air filter |
| Fuel management |
Carburettor |
| Engine operating mode |
four-stroke |
| Cooling |
air cooling |
| Exhaust-gas limit |
EPA Phase2 & EU2002/88/EC |
| Oil specification |
SAE 10W-30 |
| Operating Engine speed |
4.200 1/min |
| Fuel consumption |
0,90 L/Std |
| Starter type |
Recoil starter |
| Oil filling min. |
0,40 l |
| Operating power |
2,4 kW |
| Engine type |
Gasoline engine |
| Cylinder |
1 |
| Engine Manufacturer |
Honda |
| Cylinder capacity |
98 cm3 |
| Fuel |
Gasoline |
| Electrode distance |
0,6 – 0,7 mm |
| Effective power |
2,4 kW |
| Oil filling max. |
0,40 l |
| MECHANICAL – OUTPUT DETAILS |
Metric |
| Number of blows |
690 1/min |
| SHIPPING AND STORAGE |
Metric |
| Shipping weight |
80,00 kg |
| ENVIRONMENT DATA |
Metric |
| Sound level LpA (Standard) |
EN 500-4 |
| Sound power LWA, guaranteed |
108,0 dB(A) |
| HAV summation (average value) |
6,5 m/s2 |
| HAV summation (Standard) |
EN ISO 5349-1 |
| Sound level LpA |
91,0 dB(A) |
| Sound power LWA (Standard) |
2000/14/EG |
| Sound power LWA, measured |
104,0 dB(A) |
| MECHANICAL DETAILS |
Metric |
| Length |
673 mm |
| Length Ramming Shoe |
336 mm |
| Height |
965 mm |
| stroke at tamper |
78 mm |
| Width Ramming Shoe |
280 mm |
| Width |
343 mm |
| Weight |
72,00 kg |
| Custom Attributes |
Metric |
| Model serie |
BS60-4 |
