Remote Control Sheepsfoot Roller
Rental Rates
Maui: Kahului
Day
$354.00
Week
$1,076.00
4 Week
$2,747.00
Price
Select dates for price
Description

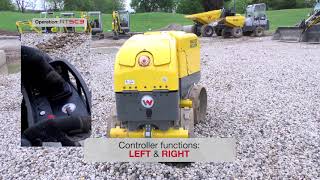

The RT trench roller with the SC3 infrared-remote control offers proven compaction results with safer operation. The smart control uses an infrared signal with line-of-sight control. The machine stops moving and vibrating should the line-of-sight be lost or if the operator comes within three feet (one meter) of the roller’s receiving eyes with the control box. The articulated trench roller offers below the axle exciter in each drum to allow for the efficient transfer of compaction energy to the soil for superior compaction results. Available with the choice of Kohler or Kubota engine. The RTx models are available with Compatec, the compaction control system that indicates the relative compaction level of the soil.
Features
Technical specifications
| RTLx-SC3 | RTL 82-SC3 | RTKx-SC3 | RTK82-SC3 | |
|---|---|---|---|---|
| Operating data | ||||
| Operating weight lb | 3,295 | 3,197 | 3,235 | 3,134 |
| L x W x H in | 73 x 32 x 50 | 73 x 32 x 50 | 73 x 32 x 50 | 73 x 32 x 50 |
| Drum diameter in | 20.5 | 20.5 | 20.5 | 20.5 |
| Width Drum in | 22 / 32* | 32 | 22 / 32* | 32 |
| Centrifugal force (min.) lbf | 7,688.5 | 7,688.5 | 7,688.5 | 7,688.5 |
| Centrifugal force (max.) lbf | 15,377 | 15,377 | 15,377 | 15,377 |
| Frequency Hz | 41.7 | 41.7 | 41.7 | 41.7 |
| Linear force static (per drum) lb/in | 57.7 | 55.4 | 55.4 | 52.6 |
| Linear force dynamic (per drum) lb/in | 258 | 258 | 258 | 258 |
| Travel speed forward mph | 1.5 | 1.5 | 1.5 | 1.5 |
| Travel speed reverse mph | 1.5 | 1.5 | 1.5 | 1.5 |
| Turning radius inner in | 63 | 63 | 63 | 63 |
| Surface capacity max. (depending on soil consistency) ft²/h | 10,654 | 10,654 | 10,654 | 10,654 |
| Gradeability max. (without vibration) % | 50 | 50 | 50 | 50 |
| Gradeability max. (with vibration) % | 45 | 45 | 50 | 50 |
| Engine / Motor | ||||
| Engine / Motor type | Water-cooled 3-cylinder diesel engine with electric starter | Water-cooled 3-cylinder diesel engine with electric starter | Water-cooled 3-cylinder diesel engine with electric starter | Water-cooled 3-cylinder diesel engine with electric starter |
| Engine / Motor manufacturer | Kohler KDW 1,003 | Kohler KDW 1,003 | Kubota D902 | Kubota D902 |
| Displacement in³ | 62.7 | 62.7 | 54.8 | 54.8 |
| Operating performance (DIN ISO 3046) hp | 19.8 | 19.8 | 20.8 | 20.8 |
| RPM / speed Operating rpm | 3,000 | 3,000 | 3,000 | 3,000 |
| Fuel type Low Sulfer / Ultra Low Sulfer | Diesel | Diesel | Diesel | Diesel |
| Fuel consumption US gal/h | 1.2 | 1.2 | 1.2 | 1.2 |
| Tank capacity US gal | 6.3 | 6.3 | 6.3 | 6.3 |
*RTx model drums can be configured for 32in (820mm) or 22in (560mm) width.
