JLG – 3246 E2
Rental Rates
Select dates for price
Description

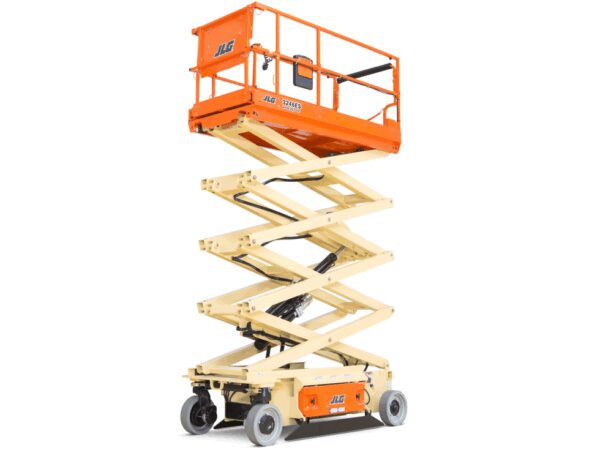

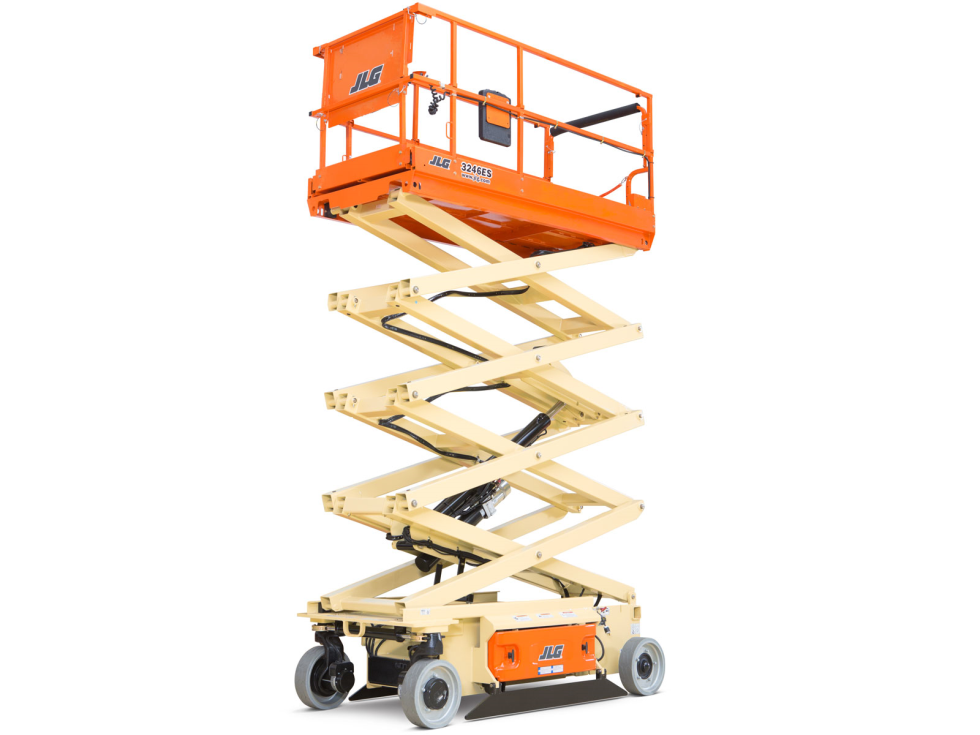

JLG’s 3246ES battery powered scissor lift is the perfect unit to finish aerial jobs. With its full electric motor, this machine allows workers to operate either indoors or outdoors. Quiet, smooth, and compact, the 3246ES makes working as seamless as possible.
Typical Applications
- Construction, industrial, maintenance, distribution, entertainment and institutional users
- Warehousing and distribution centers
- Hotel, recreation and educational facilities
Features
- Wide stance rigid scissor arms
- Rugged platform and railing
- Dual rear wheel drive and front wheel steering
- Corrosion resistance and more
Features
Measurements:
Working Height: 38.3 ft
Platform Height: 31.8 ft
Platform Capacity – unrestricted: 705.5 lbs
Machine Width: 3.8 ft
Ground Clearance: 5 in
Machine Height: 7.7 ft
Machine Height – rails folded: 6.5 ft
Machine Length: 8.2 ft
Machine Width: 3.8 ft
Platform Dimensions (A): 3.7 ft
Platform Dimension (B): 8.2 ft
Platform Extension Length: 4.2 ft
Platform Height: 31.8 ft
Platform Height – lowered 4.1 ft
Platform Railing Height: 3.6 ft
Tire Size: 41 x 12.5 cm
Wheelbase: 6.9 ft
Performance
Drive Speed – platform elevated: 0.5 mph
Drive Speed – platform lowered: 2.5 mph
Gradeability: 25%
Lift Time: 50 sec.
Lower Time: 60 sec.
Maximum Drive Height: 31.8 ft
Maximum Lift Height: 31.8 ft
Platform Capacity – Extension: 264.6 lbs.
Platform Capacity – Restricted: 992.1 lbs.
Platform Capacity – Unrestricted: 705.5 lbs.
Turning Radius – outside: 7.9 ft
Weight: 6400 lbs.
