Welder 130 Amp Portable
Rental Rates
Maui: Kahului
Day
$102.00
Week
$393.00
4 Week
$1,172.00
Price
Select dates for price
Add these items to your order
-
Welding Leads 50 Foot
Call for Pricing -
Leads for Welders Positive and Negative
Call for Pricing
Description

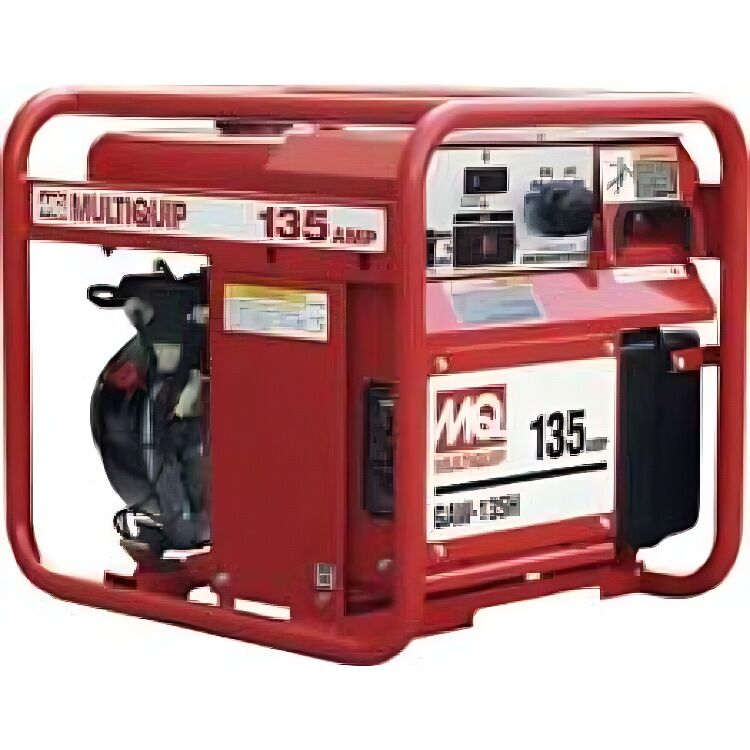

GAW135H
135 Amps DC, 1.5 KW/120V AC, Honda GX200
Coming in at only 114 pounds, Multiquip’s 135-amp welder is the number one choice for those hard to reach areas with its maintenance free permanent magnet generator design. This unit maintains the quality output contractors demand and have come to expect.
- 135 amps of DC welding power, 1.5kW AC output
- Dry weight of only 114 pounds (52 kg)
- Honda GX200 gasoline engine
- Up to 45% lighter than other welders in its class
- Can be mounted to service trucks or on high reach baskets
- Ideal for a wide variety of utility welding applications
Features
| DC Voltage | CC: 25.2 V | CV: n/a V |
| DC Current | CC: 135 A | CV: n/a A |
| Current Range | 40-135 A | |
| Max Duty Cycle w/ Full Amps Availible |
40% @135 A | |
| Welding Processes | SMAW FCAW |
|
| Fuel Tank Capacity | 1.6 gal | 7.3 L |
| Fuel Consumption at Rated Load |
0.46 gph | |
| AC Power Output (Single Phase) |
1.5 kW | |
| Cycle | 60 Hz | |
| Voltage | 120 V | |
| Amperage | 12.5 A | |
| Voltage Regulation | 3 % | |
| Receptacles | NEMA 5-20R 125V GFCI 20A | |
| Overall Length | 21.75 in | 55.25 mm |
| Overall Width | 17.75 in | 45.1 mm |
| Overall Height | 19 in | 48.26 mm |
| Shipping Dimensions | 22.5 x 19 x 20.5 in 57.2 x 48.25 x 52 mm |
|
| Operating Weight | 123 lb | 55.7 kg |
| Shipping Weight | 114 lb | 51.7 kg |
| Engine Make/Model | Honda GX-200 | |
| Start Method | Recoil | |
| Engine Power | 5.5 HP | 4.1 kW |
| Engine RPM | 3600 | |
| Fuel Type | Gasoline | |
Notice: Features and equipment specifications are subject to change without notice.
