Scanner Concrete Hilti
Rental Rates
Maui: Kahului
Day
$637.00
Week
$2,477.00
4 Week
$7,432.00
Price
Select dates for price
Description

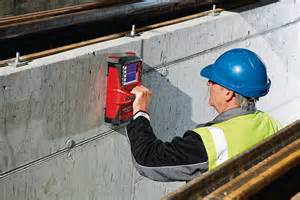

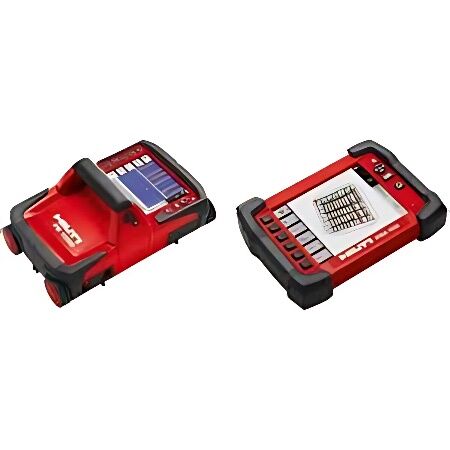

Get a clear picture with the new Hilti
PS 1000 X-Scan detection system.
Providing clear, 2D and 3D images of virtually all kinds of objects concealed in concrete structures, the new Hilti PS 1000 X-Scan system brings non-destructive inspection of concrete structures into a new era. This new detection system which employs the pulse radar principle is able to locate various types of objects, even through several layers
Features
| Accuracy of depth indication | <4 in: ±0.5 in;>4 in: ±15 % 1 |
| Data memory | Aprox. 20 scans |
| Data memory (scanner) | Aprox. 20 scans |
| IP protection class | IP 54 (IEC 529) |
| Battery type | Li-Ion |
| Operation time with Li-ion battery | 4 h |
| Operating temperature range | 14 – 122 °F |
| Dimensions (scanner) | 12.5 x 7.5 x 5.6 in |
| Weight (scanner) (incl. battery) | 5.4 lb. |
| Max. detection depth for object localization | 12 in 2 |
Show more Show less
1 Performance and accuracy can be significantly affected by site conditions. See operating instructions.
2 Performance and accuracy can be significantly affected by site conditions. See operating instructions.
