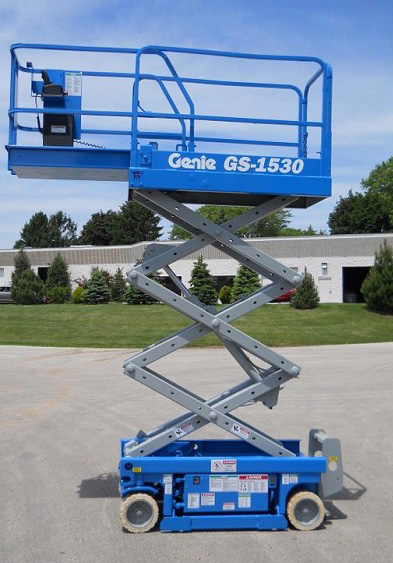

Platform lift – Genie – GS 1530
Rental Rates
Maui: Kahului
Day
$142.00
Week
$355.00
4 Week
$904.00
Price
Select dates for price
Description
- The solid steel deck platform has a slip-resistant surface.
- Heavy duty tubular steel guardrails maximize durability. Telescopic end rail can be raised to accommodate large loads.
- Lubrication-free, service-free pivot points.
- Built-in lanyard attachment points.
- The ergonomic Joystick Controller operates from the platform or the ground.
- Low noise level allows operation in quiet work environments.
- High angle steering provides excellent maneuverability.
- Swing-out battery box and power module allow easy access to componentry.
- Variable speed motor extends battery and motor life by using only the energy needed to do the required work. On-board troubleshooting diagnostics notify the operators of possible fault conditions.
Standard Features
- GS-1530 has 21 ft (6.5 m) working height
- Compact 30 in (76 cm) width
- 600 lb (272 kg) lift capacity for the GS-1530 and 500 lb (227 kg) lift capacity for the GS-1930
- Compact design
- Automatic 25 amp battery charger
- Proportional controls for lift and drive functions
- Multiple disc brakes provide smooth deceleration
- Drive speed interlock limits speed while elevated
- Emergency stop at both platform and ground controls
- Manual platform lowering valve
- Manual brake release
- Pothole guards
- Non-marking tires
- AC wiring to platform
- Tilt level sensor with an audible alarm
- Beeper horn
- Hour meter
Standards Compliance
- ANSI/SIA A92.6
- CSA CAN3-B354.2-M82
- CE compliance option
- AS 1418.10
Features
|
Model
|
GS-1530
|
GS-1930
|
||
|
USA
|
Metric
|
USA
|
Metric
|
|
|
Working Height
|
21 ft.
|
6.5 m
|
25 ft. 1 in.
|
7.8 m
|
|
Platform floor height
|
15 ft.
|
4.6 m
|
19 ft. 1 in.
|
5.8 m
|
|
Height – stowed (guardrails) (ANSI CSA)
|
76 in
|
1.93 m
|
82 ? in.
|
2.1 m
|
|
Height – stowed (platform)
|
36 ? in.
|
93 cm
|
38 ? in.
|
98 cm
|
|
Length – Stowed
|
72 in.
|
1.83 m
|
72 in
|
1.83 m
|
|
Width
|
30 in.
|
76 cm
|
30 in.
|
76 cm
|
|
Wheelbase
|
52 in
|
1.32 cm
|
52 in.
|
1.32 cm
|
|
Ground Clearance
|
2 5/8 in
|
7 cm
|
2 5/8 in
|
7 cm
|
|
Ground Clearance – pothole guards deployed
|
7/8 in
|
2 cm
|
7/8 in
|
2 cm
|
|
Platform length – outside
|
64 3/8 in
|
1.64 m
|
64 3/8 in.
|
1.64 m
|
|
Platform width – outside
|
64 3.8 in.
|
1.64 m
|
64 3/8 in.
|
1.64 m
|
|
Platform length – extended
|
103 3/8 in
|
2.63 m
|
103 3/8 in.
|
2.63 m
|
|
Guardrail height
ANSI, CSA CE |
39 in. 43-3/8 in. |
1 m 1.1 m |
39 in. 43-3/8 in. |
1 m 1.1 m |
|
Toeboard height
|
6 in.
|
15 cm
|
6 in.
|
15 cm
|
|
Turning radius – outside
|
61 in.
|
1.55 m
|
61
|
1.55 m
|
|
Turning radius – inside
|
zero
|
zero
|
||
|
Power source
|
24V (4 6V 245 AH batteries) (both models)
|
|||
|
Drive speed – stowed
|
0 – 2.5 mph
|
0- 4 km/h
|
0 – 2.5 mph
|
0 – 4 km/h
|
|
Drive speed – raised
|
0 – 0.6 mph
|
0 -1 km/h
|
0 – 0.6 mph
|
0 -1 km/h
|
|
Elevate/lower speed
|
16 / 17 sec.
|
16 / 23 sec.
|
||
|
Proportional controls
|
standard
|
standard
|
||
|
Tires (solid rubber)
|
12 x 4.5 x 8 in / 30 x 11 x 20 cm (both models)
|
|||
|
Gradeability
|
30%
|
30%
|
||
|
Drive
|
dual front wheel
|
dual front wheel
|
||
|
Multiple disk brakes
|
dual rear wheel
|
dual rear wheel
|
||
|
Pothole protection
|
standard
|
standard
|
||
|
Weight
|
2,658 lbs.
|
1,206 kg
|
2,658 lbs.
|
1,206 kg
|
