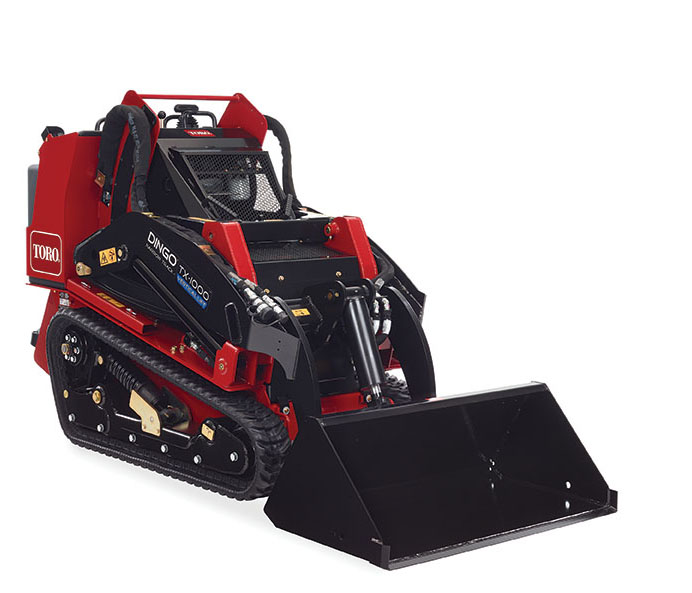

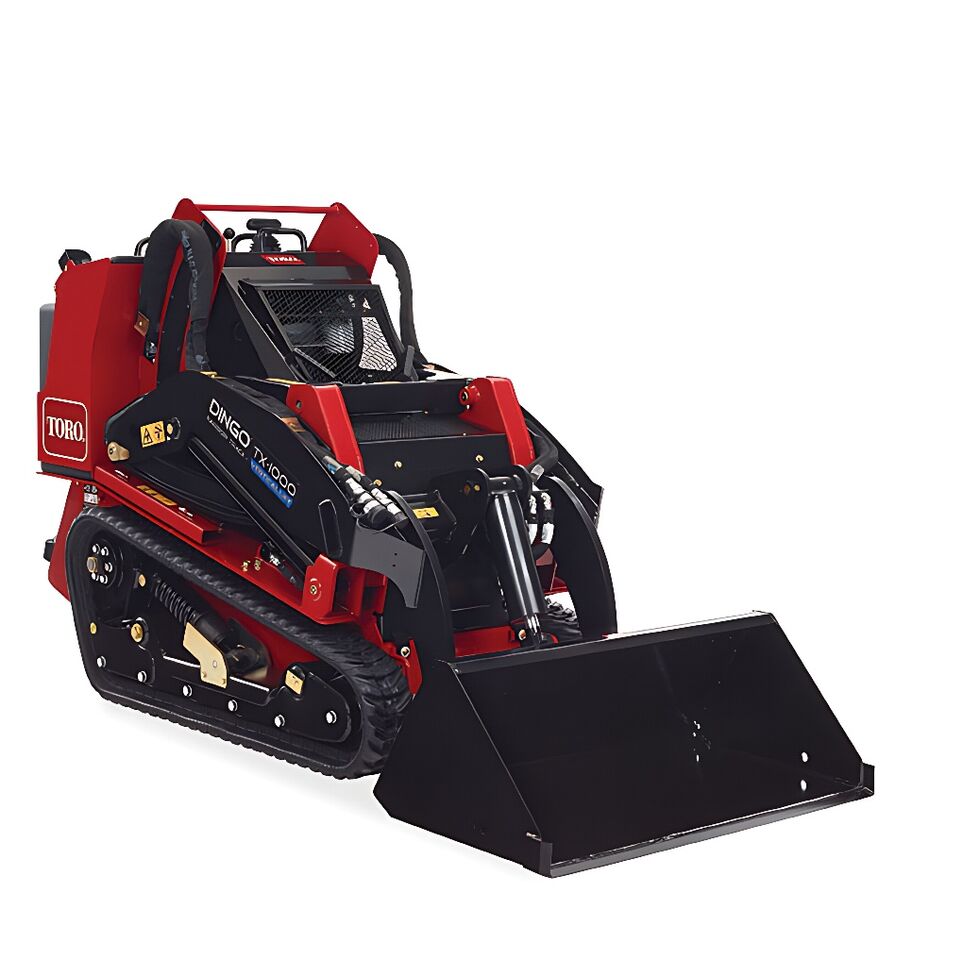

Loader Compact Utility (Oahu Only)
Call for Pricing
Add these items to your order
-
4 in 1 Bucket - Toro Dingo - Model: 22411 -
$376.00 / Day -
Stump grinder attachment -Toro Dingo - Model: 22429
$166.00 -
Rock Bucket for Dingo/ Mini Loader
$59.00 / Day -
Bucket attachment - Toro Dingo - Model 22409
$0.00 -
Moisture Thermal Camera for Android
$75.00 / Day -
Adjustable Forks -Toro Dingo - Model: 22418
$74.00 -
Land Leveler Attachment for Dingo/ Bobcat Mini Loader
Call for Pricing -
Tiller attachment - Toro Dingo - Model: 22445
$191.00 -
Trencher attachment -Toro Dingo - Model: 22465 -TX 413 2'
$96.00 -
Bore Drive Head - Toro Dingo - Model: 22420
$202.00 / Day
Description
- Vertical lift loader arm design increases load capacity and greater reach at full height
- Rated operating capacity over 1,000-lbs to lift more than any compact utility loader on the market
- 81″ (206 cm) hinge pin height easily clears side of a 30-yard dumpster or one-ton truck for maximum jobsite productivity
- Exclusive traction control design is intuitive, easy to operate, and effortless
- Rent this mini loader to get your job done on any island Maui, Kauai, Kona, Hilo and Oahu
Features
A Wheelbase 41″ (10 cm)
B Ground Clearance 6.0″ (15 cm)
Overall Width 33.7″ (86 cm 41″ (104 cm)
C Overall Length 100.7″ (256 cm)
w/bucket; 81.7″ (208 cm)
w/o bucket
D Overall Height 53.2″ (135 cm)
E Max Operating Height 105″ (267 cm)
F Hinge Pin Height 81″ (206 cm
G Dump Height 61″ (155 cm)
H Dump Angle 40-degrees
I Reach – Fully Raised 24.5″ (62 cm)
Ground Speed (F/R) 4.7 mph (7.6 km/h)/ /4.7 mph (7.6 km/h)
Weight 2,610 lbs (1184 kg) 2,790 lbs (1266 kg)
Tip Capacity 2,857 lbs (1,296 kg) 3,071 lbs (1,393 kg)
Rated Operating Capacity (35% of Tip Capacity)* 1,000 lbs (454 kg) 1,075 lbs (488 kg)
ENGINE Engine Kubota® D1305 Manufacturer’s Gross HP Rating at RPM** 24.9 HP (18.6 kW) @ 2600 rpm Displacement 77 cu. in. (1262cc) Fuel Type Diesel Air Filter Two-stage, heavy-duty, remote Cooling System Liquid Cooled Fuel Tank 11.5 gallons (44 liters) Oil Capacity 6.0 quarts (5.7 liters) Loader Arms Vertical OPERATION Hydraulic Pressure 3,000 PSI Hydraulic Flow Traction: 13.3 gpm (each pump); Auxiliary: 15.2 gpm Reservoir Capacity 10 gallons (57.5 liters) TRACKS Tracks Sprocket-drive, 6 road wheels per side Traction Dual hydrostatic pump Track Length x Width 127.6″ x 5.9″ (324 cm x 15 cm) 127.6″ x 9.5″ (324 cm x 24 cm) Ground Pressure 5.4 PSI 3.6 PSI
