Excavator 4200 lbs (0823)
Rental Rates
Select dates for price
Description

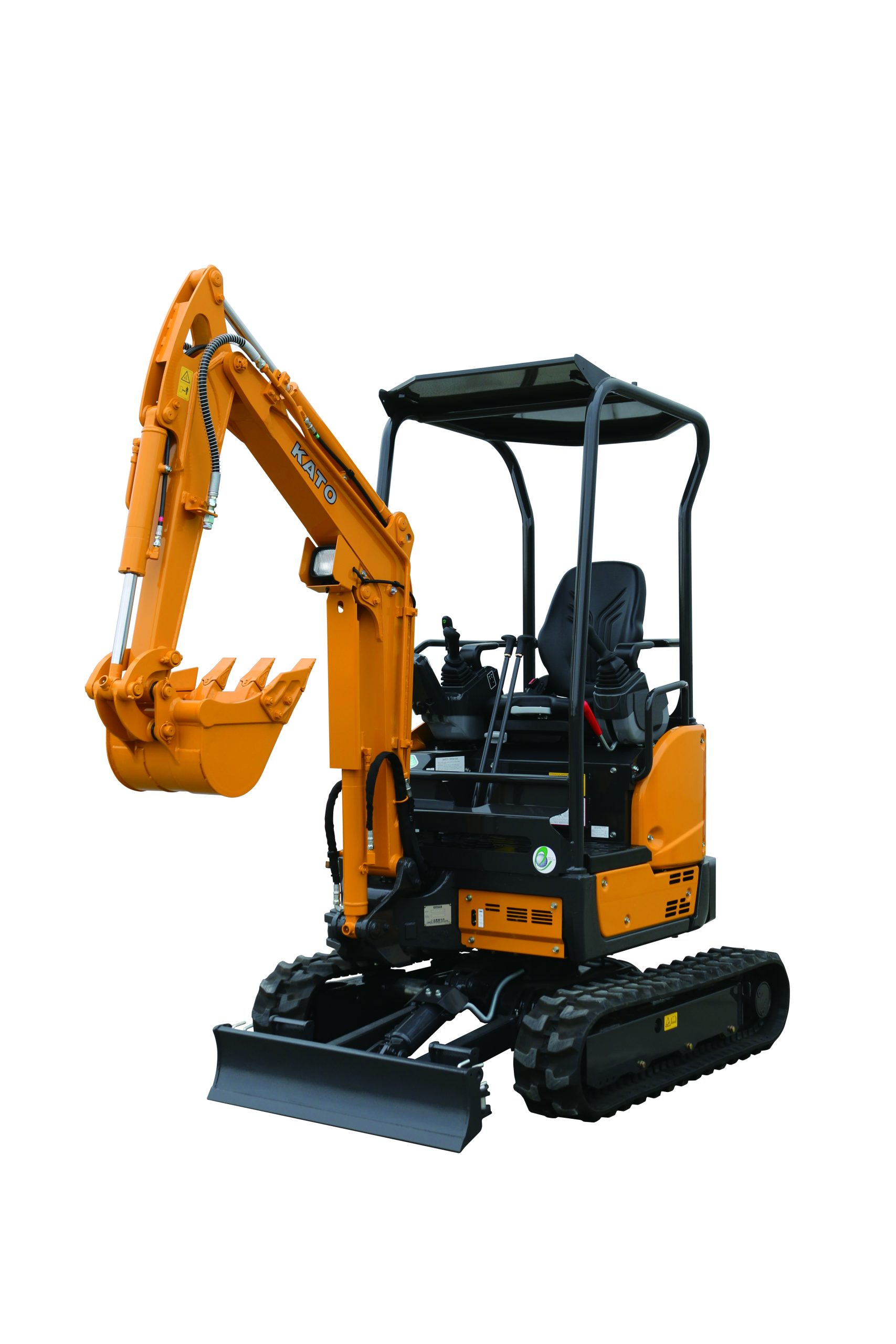

The V5 Mini Excavator series not only has zero tail swing, but its high-powered digging force is increased by 10%, and the 4-pump system is quick to respond, making this the ultimate mini excavator.
Comfortable and easy-to-use, the V5 mini excavators are also fuel efficient and easy to maintain. With an auto-parking brake and a neutral engine-start, the V5 mini excavators are proactive in error-prevention.
Features
MODEL HD17V5 Performance
Bucket Capacity 1.6 ft3
Bucket Width 12’’
Operating Weight 4,261 lbs
Transport Weight 3,924 lbs
Swing Speed 8.5 rpm
Travel Speed (Low/ High) 1.3 mph / 2.5 mph
Gradeability 30°
Ground Pressure 4.4 psi
Bucket Digging Force 4,842 lbs
Size 3’ 3” x 9.25”
Lift Above / Drop Below Ground 11.8” / 9”
A. Max digging radius 12’6’’
B. Max digging depth 7’2’’
C. Max vertical dig depth 5’8’’
D. Max dumping height 8’5’’
E. Max digging height 11’10’’
F. Min. front-turn radius 4’10’’
G. At right boom swing 4’5’’
