Hydraulic Power System
Rental Rates
Maui: Kahului
Day
$195.00
Week
$568.00
4 Week
$1,417.00
Price
Select dates for price
Description
Wacker Neuson dual power is the innovative solution for an emission-free auxiliary drive. In addition to the integrated diesel engine, the electro-hydraulic unit HPU8 can be connected to the 803 compact excavator if necessary. The HPU8 is technically tailor-made to the requirements of the excavator 803. In this way, the excavator can be operated electrically and emission-free if necessary. The handling is easy: The generator is connected to the undercarriage via Plug & Play – done.
Features

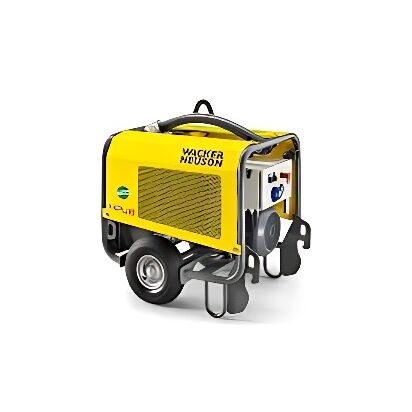

Electro-hydraulic unit HPU 8
Operating data
| Operating weight incl. hydraulic oil | 423.3 lb |
| L x W x H | 36.5 x 28.3 x 33-39.4 in |
Engine / Motor
| Engine / Motor | 3-phase electric motor |
| Engine performance | 12.06 hp |
| Voltage | 480 V |
| Input current | 16 A |
| Frequency | 60 Hz |
Hydraulic system
| Flow rate | 5.2 US gpm |
| Operating pressure | 2,755.76 psi |
| RPM / speed | 1,728 rpm |
| Hydraulic oil tank | 9.5 US qt |
| Hose | 39.4 ft |
