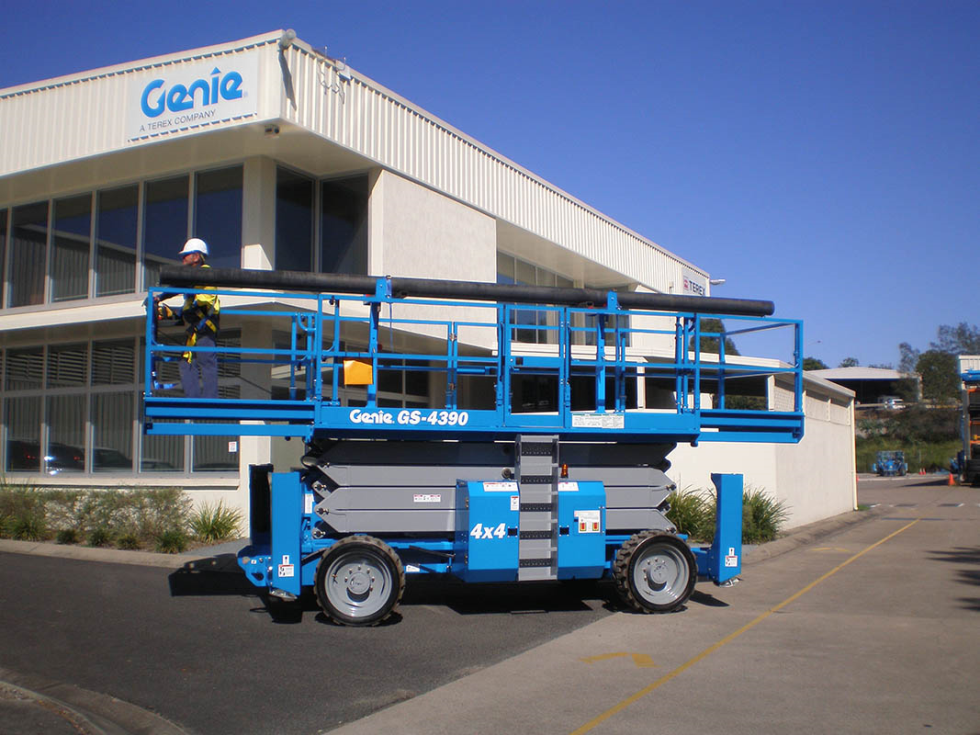

Genie North America - GS- 4390RT

Genie North America – GS- 4390RT

Rental Rates

Maui: Kahului
Day $341.00
Week $1,296.00
4 Week $2,594.00
Price

Select dates for price

Total

Select dates for total

Description

  • Large platform with durable diamond-plate aluminum flooring. A single 60 in (1.52 m) multi-position slide-out extension deck, on the front of the machine, comes standard. A second 48 in (1.22 m) slide-out extension deck, on the rear of the machine, is available as an option.
  • Rear platform railing can be removed for easier loading and unloading of materials.
  • Slide-out engine tray allows easy access to components.
  • Automatic leveling hydraulic outriggers are standard on the GS-5390 RT, optional on the GS-4390 RT.

Standard Features

  • GS-4390 has 49 ft (14.9 m) working height and
  • GS- 5390 RT has 59 ft (18 m) working height
  • 1,500 lb (680 kg) load capacity
  • Positive traction-controlled four-wheel drive
  • 50% gradeability
  • Proportional drive
  • Two-speed lift functions
  • Troubleshooting diagnostics
  • Two self-closing entry gates
  • Foam-filled tires
  • AC wiring to platform
  • Descent alarm
  • Tilt sensor with an audible alarm
  • Horn
  • Hour meter

Standards Compliance

  • ANSI/SIA A92.6
  • CSA CAN3-B354.2-M82
  • CE compliance option
  • AS 1418.10



Features

Measurements

Working Height Maximum: 49 ft.

Platform Height Maximum: 43 ft.

Platform Height – stowed: 5 ft, 11 in.

Platform Length: 13 ft, 0.5 in.

*(outside, extended – single deck): 17 ft, 6.25 in.

*(outside, extended – dual deck): 21 ft, 6.5 in.

Slide-Out Platform Extension Deck (front): 5 ft.

Slide-Out Platform Extension Deck – (rear): 4 ft.

Platform Width – outside: 6 ft.

Height (stowed): 9 ft, 7.5 in.

*Height (stowed – rails lowered): 7 ft, 4.75 in.

Length – stowed (single deck): 12 ft, 11.25 in.

*Length – stowed (dual deck): 13 ft, 0.5 in.

Length – extended (single deck): 17 ft, 8.5 in.

*Length – extended (dual deck): 21 ft, 6.5 in.

Width (standard tires): 7 ft, 6 in.

Wheelbase: 9 ft, 4 in.

Ground Clearance – center: 1 ft, 2 in.



Productivity

Maximum Platform Occupancy: 7

Lift Capacity: 1500 lbs.

Lift Capacity – extension deck: 500 lbs.

Drive Height: Full Height

Drive Speed – stowed: 5.0 mph

Drive Speed – raised: 0.7 mph

Gradeability – stowed: 50%

Turning Radius – inside: 7 ft, 1 in.

Turning Radius – outside: 17 ft, 6 in.

Controls: proportional

Drive: 4 Wheel

Raise/Lower Speed: 45/39 sec





Weight: 13,086 lbs.

SKU: 4390 Category:
