Excavator – Bobcat E20
Rental Rates
Select dates for price
Add these items to your order
-
Bucket Excavator 8" (2-4K)
$20.00 / Day -
Bucket 12" for Excavator (2-4K)
$20.00 / Day
Description

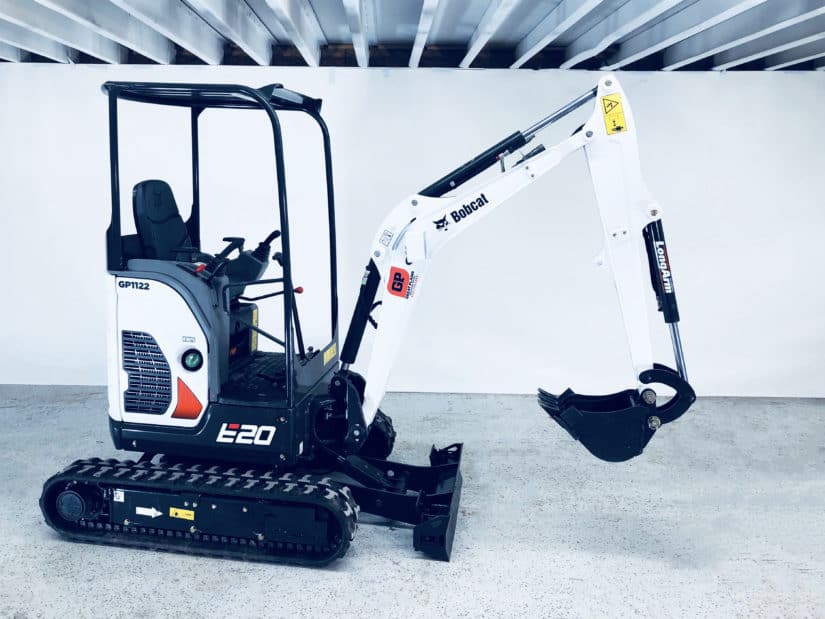

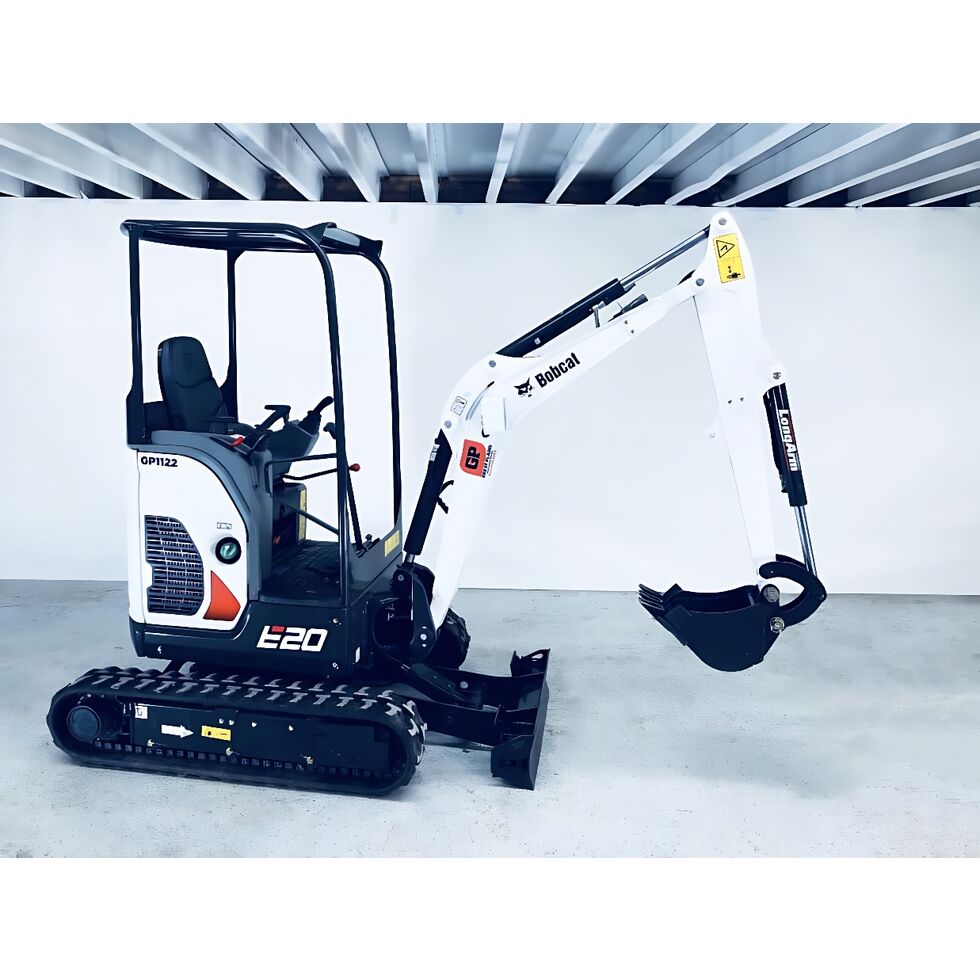

The Bobcat® E20 compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 39 in. to travel through gates or between homes, then expand to 54 in. for a wider footprint and greater performance. Zero tail swing gives you better maneuverability on the most restricted job sites.
Features
Engine
|
Horsepower |
13.9 HP |
|
Maximum Governed RPM |
2,500 rpm |
|
Engine Fuel |
Diesel |
|
Emissions Tier (EPA) |
Tier 4 |
Performance
|
Operating Weight |
4,306 lb |
|
Weight Class |
2 t (4000 lbs) |
|
Travel Speed – High |
2.6 mph |
|
Travel Speed – Low |
1.3 mph |
|
Arm Digging Force |
2,086 lbf |
|
Bucket Digging Force |
4,684 lbf |
|
Rated Lift Capacity |
1098 lb |
|
Lift Radius |
118 in |
|
Boom Swing – Left |
80 degrees |
|
Boom Swing – Right |
60 degrees |
|
Maximum Dig Depth |
8.5 ft. |
|
Max Dump Height |
8.8 ft |
|
Maximum Reach @ Ground Level |
14 ft. |
Dimensions
|
Length (Travel and Idle) |
145.2 in |
|
Width |
39 in |
|
Height |
90.4 in |
|
Height (with operators cab) |
90.4 in |
