Electric Mini Loader
Rental Rates
Select dates for price
Add these items to your order
-
Extension Cord 12 Gauge 50' 110 volt
$6.00 / Day
Description

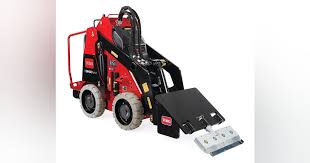

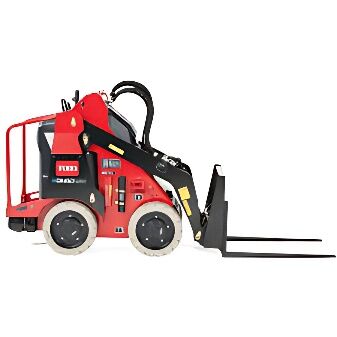

Exceptional runtime in a compact design allows the eDingo to fit in the tightest spaces and tackle the toughest of jobs. Ideal for indoor construction and demolition, the eDingo 500 is powered by the Hypercell® power system, a battery technology developed by Toro to match the power of traditional internal-combustion-powered products with zero engine-exhaust emissions and less noise.
The eDingo is optimised to deliver up to an eight-hour continuous runtime, while maintaining a 234 kg (515 lb) Rated Operated Capacity (ROC), allowing it to complete more jobs with less hassle.
Designed for the effective use of a wide range of attachments, the next-generation eDingo 500 gives you the flexibility to swap out attachments to tackle indoor demolition or whatever job you face.
KEY FEATURES
- Lithium-ion battery requires no maintenance
- Selectable power modes to conserve energy
- Solid non-marking tires standard
- The eDingo 500 has a brand-new frame with a narrow footprint to easily fit through a 92 cm (3-ft.) door.
- HyperCell® Power System is optimised to deliver up to 8 hours of continuous runtime.
- Optional attachments: Standard Bucket, Narrow Bucket, Light Materials Bucket, 4-n-1 Bucket, Adjustable Forks, Grapple Rake, Leveler, Utility Blade, Auger
KEY SPECIFICATIONS
- Rated Operating Capacity of 233 kg (515 lbs)
- Ground Speed of 4.43 km/hr (2.75 mph) (normal mode)
- Hydraulic Flow at 24.6 lpm (6.5 gpm)
- Hydraulic Pressure (drive) of 22,408 kPa (3,250 psi)
Features
SPECIFICATIONS
| eDINGO 500(MODEL 22219) | ||
|---|---|---|
| BATTERY | Capacity | 13.57 kWh |
| Chemistry | Lithium Ion | |
| AC input voltage range | 85-270 VAC | |
| HYDRAULIC SYSTEM | Hydraulic Pressure | 22,408 kPa (3,250 psi) |
| Hydraulic Flow | 24.6 lpm | |
| Reservoir Capacity | 27.28 L | |
| WHEELS | Standard | Non-marking / Solid |
| DIMENSIONS | Wheelbase | 71.12 cm (28″) |
| Ground Clearance | 10.80 cm (4.25″) | |
| Overall Dimensions (WxLxH) with Bucket | 106.25 cm x 223.52 cm x 137.80 cm (41.83” x 88” x 54.25” ) | |
| Overall Dimensions (WxLxH) without attachment | 76.20 cm x 168.28 cm x 137.80 cm (30” x 66.25” x 54.25”) | |
| Maximum Operating Height | 269.24 cm (106″) | |
| Hinge Pin Height | 205.74 cm (81″) | |
| Dump Height | 154.94 cm (61″) | |
| Dump Angle | 38 degrees | |
| Reach – Fully Raised | 54.61 cm (21.5″) | |
| Ground Speed | 4.4 km/hr (2.75 mph) | |
| Weight | 1,062.31 kg (2,342 lb) | |
| Rated Operating Capacity | 233.60 kg (515 lb) |
