Core Drill – Handheld Electric
Rental Rates
Location
Maui: Kahului
Day
$142.00
Week
$492.00
4 Week
$1,265.00
Price
Select dates for price
Related products

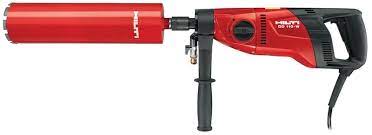

Hilti Hand‑Held Core Drill Handheld (Wet/Dry Diamond Coring)
Concrete • Masonry • Reinforced Concrete • 5/8″–4″ Diameter
The Hilti Hand‑Held Core Drill is a compact, high‑performance diamond coring machine designed for wet or dry drilling in concrete, reinforced concrete, masonry, brick, and block. With a powerful motor, two‑speed gearing, and Hilti’s quick‑release BI+ bit connection, this drill delivers fast, precise core holes for plumbing, electrical penetrations, HVAC, anchor setting, and utility installations.
Lightweight and easy to control, it’s ideal for contractors who need professional‑grade coring power in tight spaces without the bulk of a full rig. Perfect for commercial, residential, and industrial work across Hawaiʻi.
Key Features
- High‑performance motor with sturdy two‑speed gearing for optimal drilling speed
- Compact & lightweight for easier handling on walls, floors, and overhead coring
- Safety clutch, overload protection, and safety switch for maximum operator safety
- Hilti BI+ quick‑release connection — change core bits in seconds, no tools needed
- Wet or dry coring depending on material and application
- 360° adjustable side handle with integrated dust/water management (DD 150‑U feature)
- Real‑time feedback display on advanced models (DD 150‑U) for drilling speed & pressure optimization
Ideal Applications
- Wet coring in reinforced concrete for plumbing, HVAC, and utility penetrations
- Dry coring in brick, block, aerated concrete, and masonry
- Drilling sockets for electrical fittings and conduit runs
- Through‑holes for pipes, cable trays, and mechanical penetrations
- Anchor setting, railing installation, and structural penetrations (DD 150‑U)
- High motor performance and sturdy two-speed gearing for optimum drilling speed
- Compact, lightweight unit – for much easier handling
- Safety clutch, overload protection and safety switch for maximum peace of mind when operating
- Drills penetrations quickly and effortlessly in brick, block and concrete
- Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)
Applications

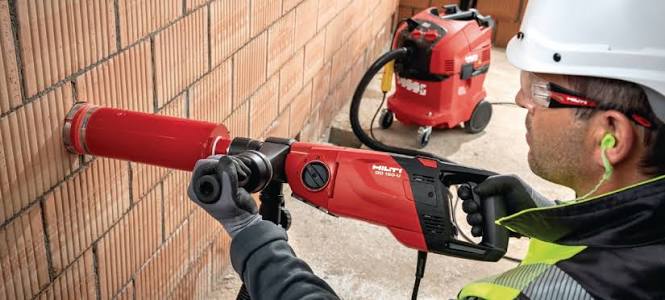

- Handheld wet coring in reinforced concrete

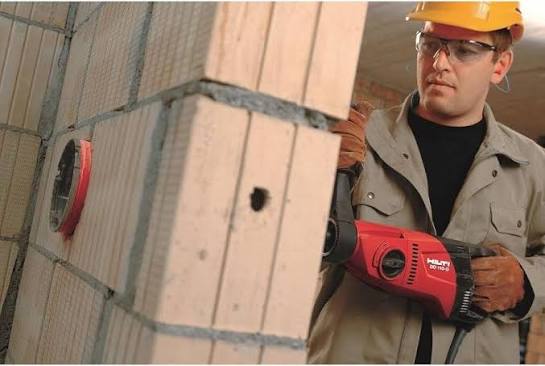

- Dry coring in aerated concrete, sandlime block, perforated brick, solid brick and clinker
- Drilling of sockets for the installation of electrical fittings
- Through holes for cables and cable trays
- Through holes for pipes etc. in plumbing, heating and air conditioning installation
-
pplications
- Handheld wet coring in reinforced concrete
- Dry coring in aerated concrete, sandlime block, perforated brick, solid brick and clinker
- Drilling of sockets for the installation of electrical fittings
- Through holes for cables and cable trays
- Through holes for pipes etc. in plumbing, heating and air conditioning installation
Hilti Hand‑Held Core Drill — Spec Sheet
Wet/Dry Diamond Coring • Concrete • Masonry • Reinforced Concrete
GENERAL
- Tool Type: Hand‑held diamond core drill
- Operation Modes: Wet or dry coring
- Base Materials: Concrete, reinforced concrete, masonry, brick, block
- Typical Applications: Plumbing penetrations, electrical conduit holes, HVAC openings, utility coring, anchor installation
PERFORMANCE
- Coring Diameter Range:
- Minimum: 5/8″ (16 mm)
- Maximum: 6‑3/8″ (162 mm)
- Motor Type: High‑performance electric
- Gearing: 2‑speed or 3‑speed (model dependent)
- No‑Load RPM:
- Low Gear: ~740 rpm
- High Gear: ~1580 rpm
- Torque Control: Integrated safety clutch
- Cooling: Wet or dry operation
FEATURES
- BI+ Quick‑Release Chuck — fast bit changes, no tools required
- 360° Adjustable Side Handle — improved control and stability
- Overload Protection — protects motor and operator
- Safety Switch & Lock‑Off Trigger
- Compact Housing for overhead, wall, and tight‑space drilling
- Optional Water Management (wet coring)
- Optional Dust Management (dry coring)
DIMENSIONS & WEIGHT
- Tool Weight: ~12.6 lbs (DD 110‑W class)
- Length: ~18–20 inches
- Handle Width: Standard ergonomic grip
POWER
- Power Source: 120V AC
- Amperage: 15A class
- Cord Type: Heavy‑duty contractor grade
- GFCI Required for Wet Coring
COMPATIBILITY
- Hilti Diamond Core Bits: BI+ connection
- Rig Mounting: Some models compatible with small rigs
- Water Supply: Standard hose connection (wet coring)
- Vacuum/Dust Extractor: Compatible with Hilti dry coring systems
SAFETY
- Kickback Risk: Use proper stance and grip
- Overhead Drilling: Only with proper bracing/support
- PPE Required: Eye, ear, gloves, and splash protection
- Utility Awareness: Avoid hidden electrical/plumbing/post‑tension cables
⚠️ Warning: Hand‑held core drills can kick back if the bit binds. Use proper PPE, maintain stable footing, avoid overhead drilling, and follow all Hilti safety procedures. Wet coring requires GFCI protection.
