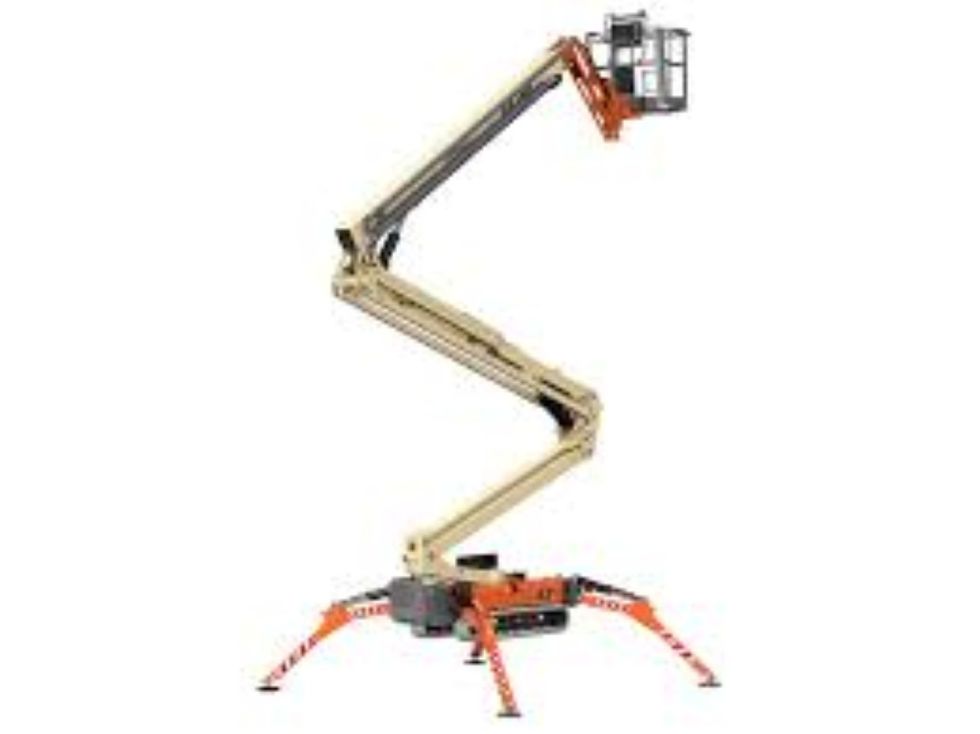

Reach more places with the JLG X770AJ compact crawler boom lift.
It fits through standard double doors and has a 500-lb. unrestricted platform capacity. This machine features drive speed control and auto levels, for smooth operation on a variety of terrains and uneven surfaces. Additional features include a regenerative valve on the telescopic cylinder, which results in a 50% increase in speed.
Features
Performance Platform Height 77-ft 5-in / 23.60-m
Horizontal Outreach 43-ft / 13.1-m
Platform Capacity 500-lb / 227-kg
Swing 360 Degrees Non-continuous
Platform Rotation 124 Degrees (+62, -62 Degrees)
Jib (Range of Articulation) 89
Degrees (+0, -89 Degrees)
Ground Bearing Pressure (Tracks) 7.8 psi / .54 kg/cm2
Ground Bearing Pressure (Outriggers) 65.3 psi / 4.50 kg/cm²
Drive Speed Diesel 0.7 mph / 1.2 km/h
Optional Lithium-Ion 0.75 mph / 1.2 km/h Max Approach /
Depart Angles 22°
Max Stabilization
Slope 16 Degrees
Gradeability 28%
Weight* (Diesel) 9,665-lb / 4,385-kg *Certain options or country standards increase weight Power Diesel
Engine: Kubota D902 21.6 hp / 16.1 kW
Fuel Tank Capacity 6.6 gal / 25 L AC Motor 120V AC / 60 HZ Optional: 76V L
ithium Ion Battery 83V / 100Ah
Tracks Standard Non-marking Tracks
Hydraulic System Capacity 15.85 gal / 60 L
