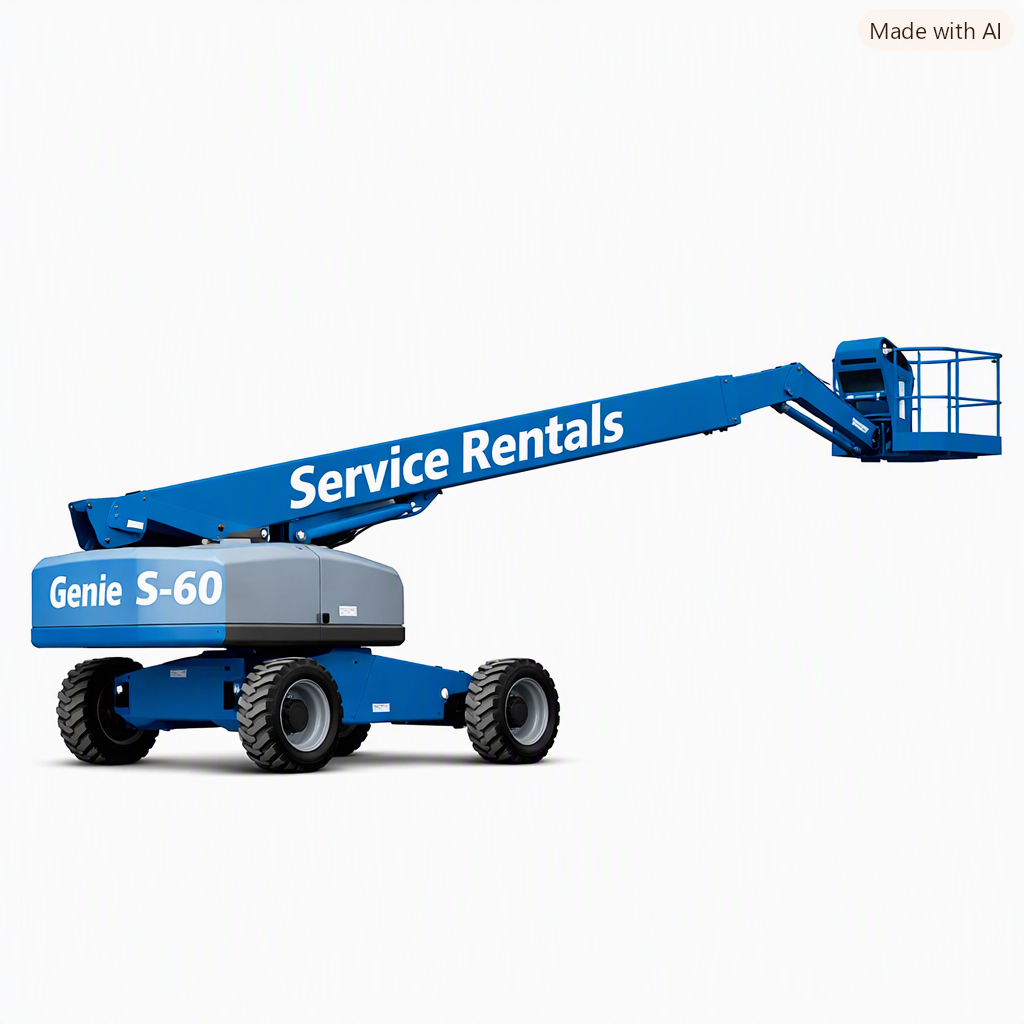

Genie S‑60 Telescopic Boom Lift

60‑ft Boom Lift Rental — Available Islandwide (Oʻahu, Maui, Big Island, Kauaʻi)

The Genie S‑60 is one of the most trusted 60‑ft telescopic boom lifts in Hawaii, delivering exceptional reach, stability, and performance for steel construction, commercial builds, industrial facilities, and resort maintenance. With a 61 ft 2 in platform height and 40 ft 6 in horizontal outreach, the S‑60 provides reliable access to elevated work areas while maintaining smooth, precise control.

Service Rentals offers the Genie S‑60 across Honolulu, Kapolei, Kahului, Wailuku, Lahaina, Hilo, Kona, and Līhuʻe, ensuring contractors statewide have access to a safe, dependable boom lift built for Hawaii’s demanding job sites.

⭐ Why Hawaii Contractors Choose the Genie S‑60

• 61 ft platform height for high‑reach steel and concrete work
• 40 ft 6 in horizontal outreach for accessing difficult areas
• 660 lb lift capacity for tools + two workers
• 160° platform rotation for precise positioning
• 353° turntable rotation for full maneuverability
• 4WD power options ideal for uneven terrain
• Smooth AC drive system (DC/FE models)
• Perfect for commercial construction, industrial plants, hotels, resorts, and large retail centers across Hawaii

Technical Specifications (Manufacturer Verified)

All specs sourced from Genie S‑60 DC & S‑60 FE documentation.

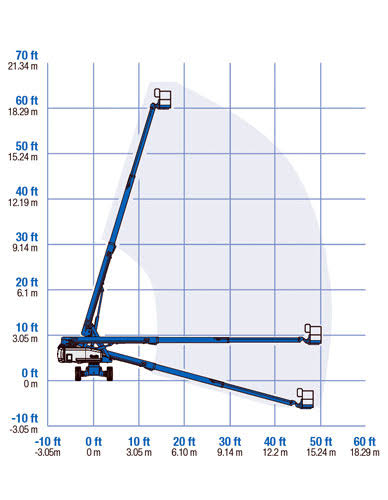

Working Range

• Platform height: 61 ft 2 in (18.60 m)
• Working height: 67 ft 2 in (20.60 m)
• Horizontal reach: 40 ft 6 in (12.30 m)
• Platform rotation: 160°
• Jib length: 6 ft (1.83 m)
• Vertical jib rotation: 130°
• Turntable rotation: 353°

Platform Dimensions

• Length: 3 ft (8 ft platform) / 2 ft 6 in (6 ft platform)
• Width: 8 ft or 6 ft options

Stowed Dimensions

• Height: 8 ft 12 in (2.73 m)
• Length: 31 ft 8 in (9.65 m)
• Width: 8 ft 2 in (2.49 m)
• Ground clearance: 18.3 in (0.46 m)
• Wheelbase: 8 ft 2 in (2.49 m)

Lift Capacity

• Unrestricted capacity: 660 lb (300 kg)
• Occupants: 2

Drive & Performance

• Drive speed (stowed): 4.0 mph (6.44 km/h)
• Drive speed (raised): 0.68 mph (1.1 km/h)
• Gradeability: 45%
• Turning radius (inside/outside): 10 ft / 17 ft 3 in

Power Options

• DC model: 48V battery pack (FLA or AGM)
• Hybrid FE model: Kubota D1105 diesel + 48V battery system
• AC drive system: 3‑phase AC
• Fuel tank: 17 gal (64 L)
• Hydraulic tank: 18 gal (68 L)
• Specs May very by Manufacture
